Non-Rewireable Accessory Cable Flex Tester For Vehicle Connectors & Socket-Outlets

Non-Rewireable Accessory Cable Flex Tester For Vehicle Connectors & Socket-Outlets

Ονομασία μάρκας:	Sinuo
Αριθμός μοντέλου:	SNQC1009
Τροποποιημένο:	1
τιμή:	Customized
Όροι πληρωμής:	T/T
Ικανότητα εφοδιασμού:	10 σετ ανά μήνα

Λεπτομέρειες

Περιγραφή του προϊόντος

Λεπτομέρειες

Τόπος καταγωγής:

Κίνα

Πιστοποίηση:

Calibration Certificate (Cost Additional)

Λειτουργία οδήγησης:

Σερβοκινητήρας

Στερέωση δειγμάτων:

Μηχανική σύσφιξη, ρυθμιζόμενη θέση σύσφιξης

Γωνία κάμψης:

0–360° ελεύθερα ρυθμιζόμενο

Ρυθμός κάμψης:

0–60 κύκλοι/λεπτό, προρυθμιζόμενο

Φορτίο βάρη:

20n, 25n, 50n, 75n, 100n, 120n, 140n, 180n

Τροφοδοτικό:

Τριφασικό AC 380V±10%, 50/60 Hz

Συσκευασία λεπτομέρειες:

κόντρα πλακέ

Δυνατότητα προσφοράς:

10 σετ ανά μήνα

Περιγραφή του προϊόντος

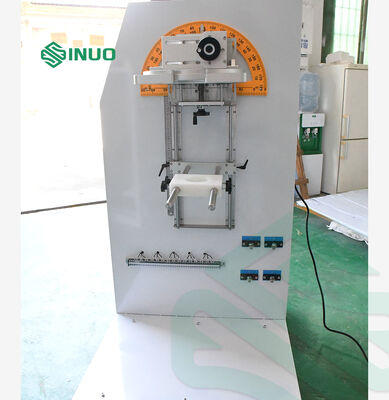

Non-Rewireable Accessory Cable Flex Tester For Vehicle Connectors & Socket-Outlets

Product Overview

This flexing test apparatus is designed and manufactured in full compliance with the requirements of IEC 62196-1:2022 Clause 26.4 Table 14 and IEC 60309-1:2012 Clause 24.4 Figure 9, etc.

It is specially used to perform mechanical load flexing tests on non-rewireable accessories for vehicle plugs, socket-outlets and couplers.

Equipment Features

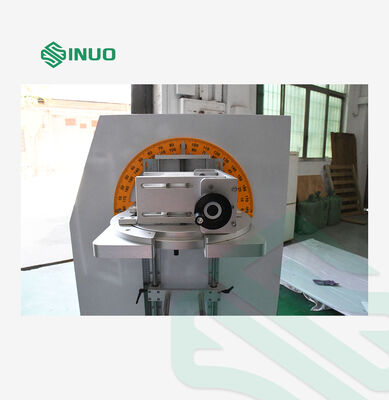

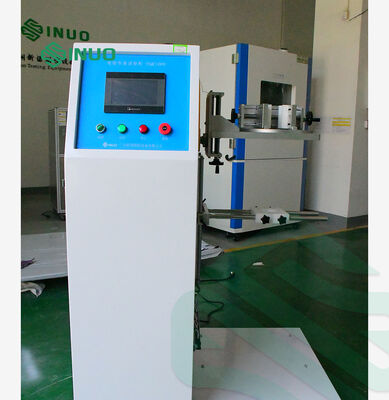

The equipment adopts PLC control with a 7-inch color touch HMI. Servo motor is applied to accurately control the flexing angle.
Flexing angle, flexing speed and test cycles can be preset on the touch screen, and the test runs automatically per the set parameters.
The equipment will stop automatically and give a prompt signal when the preset cycles are reached.
It features high-precision digital display, high-efficiency digital frequency conversion, precise speed regulation, 6-digit memory setting, multi-function modular fixture, rotation center alignment tool, and built-in load that can supply load voltage to the specimen during testing.

Technical Parameters

Test Station	Single station
Control System	PLC intelligent integrated control, 7-inch color touch HMI
Drive Mode	Servo motor
Sample Clamping	Mechanical clamping, clamping point adjustable
Flexing Angle	0-360° freely adjusted (default 90°, 45°on either side of vertical)
Flexing Rate	0-60 cycles / min, presettable
Flexing Cycles	0~999999 presettable (default:20000 cycles)
Load Weights	20N, 25N, 50N, 75N, 100N, 120N, 140N, 180N
Load Power	Built-in; phase voltage between conductors: 0-250V adjustable; AC current: 0-400A adjustable (Note: for load >400A, external power is required)
Test Judgment	Judged by on/off signal of current conduction
Equipment Dimensions & Weight	L 850mm W 800mm H 1500mm; approx. 300Kg
Power Supply	Three-phase AC 380V±10%, 50/60Hz
