IPX3/IPX4 Oscillating Tube Test System for Automotive Parts IEC 60529 Test Equipment

IPX3/IPX4 Oscillating Tube Test System for Automotive Parts IEC 60529 Test Equipment

Ονομασία μάρκας: Sinuo
Αριθμός μοντέλου: SN444
Τροποποιημένο: 1
Όροι πληρωμής: T/T
Ικανότητα εφοδιασμού: 10 σετ ανά μήνα
Λεπτομέρειες
Τόπος καταγωγής:
Κίνα
Πιστοποίηση:
Calibration Certificate (Cost Additional)
μανόμετρο:
0~0.25MPa
Ροή νερού:
00,07 L/minX
Ταχύτητα περιστροφής:
1r/min
Διάμετρος περιστροφικών πλακών:
Φ600mm
ηλεκτρικός έλεγχος:
PLC & οθόνη αφής
Ώρα δοκιμής:
1-99999S μπορεί να προρυθμιστεί
Βρέχοντας ταχύτητα:
IPX3: 4 δευτερόλεπτα/χρόνος (2 × 120°); IPX4: 12 δευτερόλεπτα/χρόνος (2 × 360°);
Τρύπα βελόνας:
Φ0,4mm
Συσκευασία λεπτομέρειες:
ΕΞΑΓΩΓΙΚΗ ΣΥΣΚΕΥΑΣΙΑ
Δυνατότητα προσφοράς:
10 σετ ανά μήνα
Επισημαίνω:

PLC & Touch Screen Control Oscillating Tube Test System

,

Φ0.4mm Needle Hole IPX3/IPX4 Test Equipment

,

Φ600mm Turntable Water Ingress Testing Equipment

Περιγραφή του προϊόντος
IPX3/IPX4 Oscillating Tube Test System for Automotive Parts
Compliant with IEC 60529:2013 standards, this IPX3/IPX4 water spray test oscillating tube system is designed for waterproof testing of electrical and electronic products, specifically automotive components.
Standards Compliance
Designed and manufactured according to IEC 60529:2013 standards for IPX3 and IPX4 waterproof level testing.
System Overview

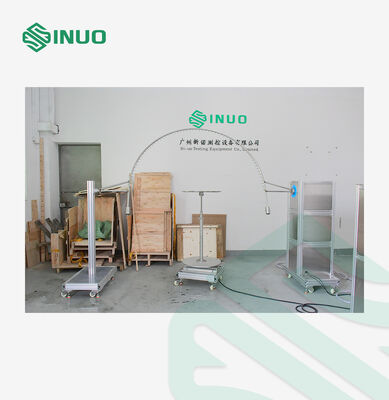

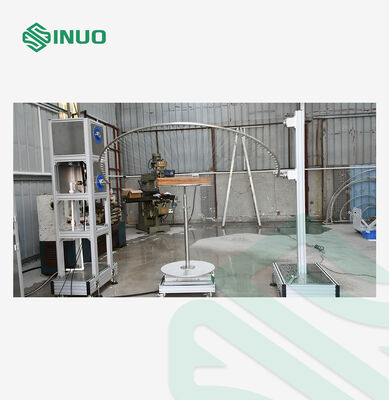

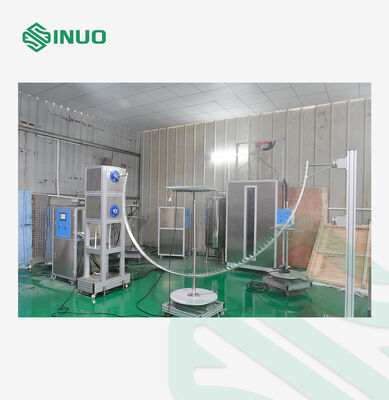

Complete IPX3~4 oscillating tubes test system includes oscillating tubes swing device, full set of oscillating tubes (R200mm, R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm), turntable, and intelligent water supply and control cabinet.
The intelligent water supply and control cabinet features water supply tank, water pump, and control system with PLC, frequency converter, and flow meter for precise test water supply flow control.
Technical Specifications
Parameter Specification
Water Supply Water flow rate >10L/min ±5% clean water without inclusion. Equipped with clean water filtration unit
Oscillating Tube Sizes R200mm, R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm oscillating tubes, made of stainless steel
Needle Hole Φ0.4mm
Included Angle of Two Holes IPX3: 120°; IPX4: 180°

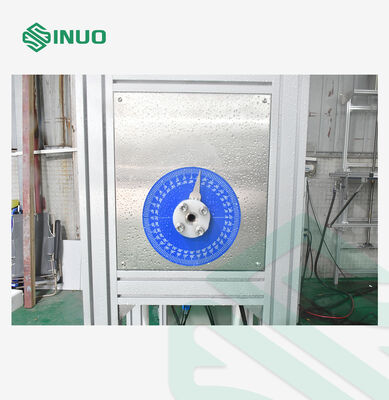

Oscillating Tube Swing Angle Max. ±175° can be preset (Standard requires IPX3: 120°; IPX4: 360°. Note: 360° cannot be achieved with turntable)
Raining Speed IPX3: 4s/time (2*120°); IPX4: 12s/time (2*360°)
Water Flow Can be set according to oscillating tube size and number of pin holes (0.07 L/min per hole)
System Details
IPX3/IPX4 Oscillating Tube Test System for Automotive Parts IEC 60529 Test Equipment 0 IPX3/IPX4 Oscillating Tube Test System for Automotive Parts IEC 60529 Test Equipment 1
