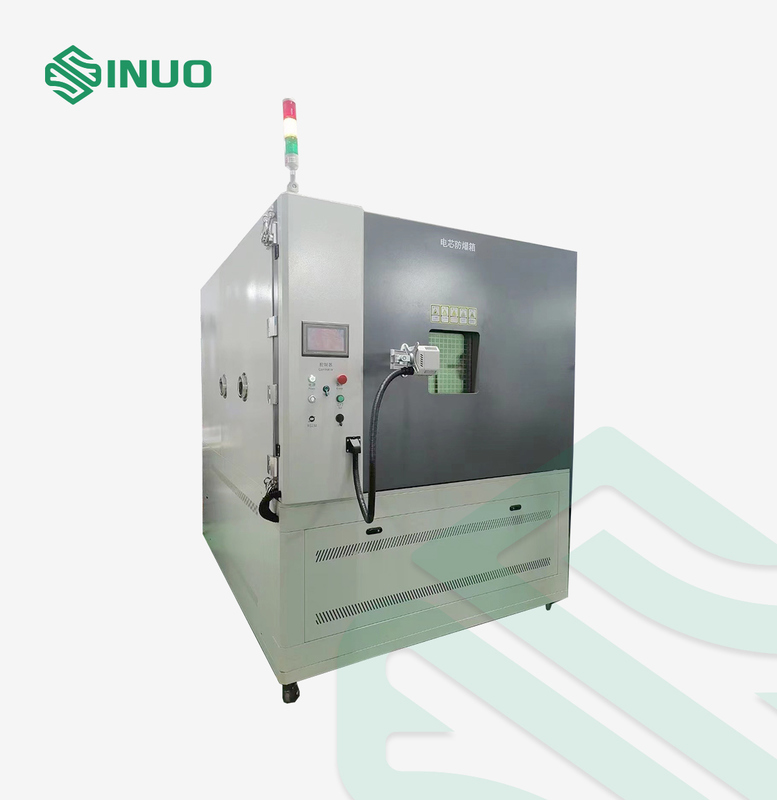

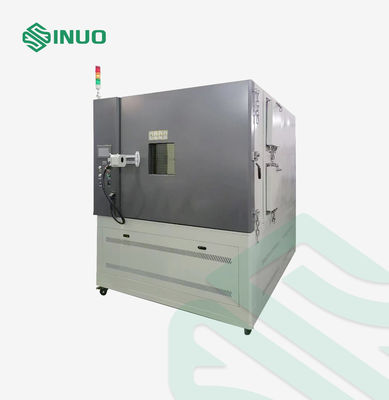

Battery Safety Test Equipment Explosion-Proof Environmental Test Chamber

Battery Safety Test Equipment Explosion-Proof Environmental Test Chamber

Ονομασία μάρκας:	Sinuo
Αριθμός μοντέλου:	ΣΥ552-1092L
Τροποποιημένο:	1
τιμή:	Customized
Όροι πληρωμής:	T/T
Ικανότητα εφοδιασμού:	10 σύνολα/μήνα

Λεπτομέρειες

Περιγραφή του προϊόντος

Λεπτομέρειες

Τόπος καταγωγής:

ΚΙΝΑ

Πιστοποίηση:

Calibration Certificate (Cost Additional)

Εξωτερικό μέγεθος:

W1875*1980H*1723 mm

Χώρος εργασίας:

W1300*700H*D1200mm

Διακύμανση θερμοκρασίας:

± 0,5 ℃

Εύρος Θερμοκρασίας:

-70 °C ~+150 °C

Ομοιομορφία θερμοκρασίας:

≤±2.0℃

Αλλαγές υγρασίας:

≤2,5%

Ρυθμός θέρμανσης:

-40°C→+72°C Γραμμικότητα χωρίς φορτίο εντός 30°C/min

Ρυθμός ψύξης:

+72°C→-40°C Γραμμικότητα χωρίς φορτίο εντός 30°C/min

Συσκευασία λεπτομέρειες:

Θήκη από κόντρα πλακέ

Δυνατότητα προσφοράς:

10 σύνολα/μήνα

Περιγραφή του προϊόντος

Battery Safety Test Equipment Explosion-Proof Environmental Test Chamber

Complied Standards & Clauses

Conforms to IEC60068-2-2:2007, IEC60068-2-1:2007, etc.

Equipment Overview

The Battery Explosion-Proof Test Chamber is specially designed to evaluate the safety performance of lithium batteries under extreme conditions such as overcharging, short-circuit, and thermal runaway. Built with a reinforced explosion-proof structure, pressure relief device, and high-temperature resistant materials, this chamber ensures maximum operator safety during destructive battery tests.

Technical Parameters

Control & Operation	PLC and touch screen intelligent control system
Chamber Size	Inner Size	External Size
	W1300700HD1200mm	W18751980H1723 mm
Temperature Range	-70 °C ~+150°C
Temperature fluctuation	±0.5℃
Humidity fluctuation	≤2.5%
Temperature uniformity	≤±2.0℃
Temperature deviation	≤±1.0℃
Heating Rate	-40℃→+72℃ No-load Linearity Within 30℃/min
Cooling Rate	+72℃→-40℃ No-load Linearity Within 30℃/min
Load condition	None
Working noise	A sound level≤70dB(A) (Measured in a soundproof room with an ambient temperature of 25°C and low echo. Using A weighting, test the average of 9 points. Each test point is 1 meter away from the noise source horizontally and 1 meter above the ground.)
Temperature and Humidity Range Scheme

Cooling system
Operation mode	Air-cooled mechanical compression cascade refrigeration system
Heating and cooling devices	1. Emerson low-temperature and low-noise scroll compressor (air-cooled heat dissipation method). 2. Cooling method: air cooling
Heat and cold exchange device	Single-stage refrigeration system, Emerson low-temperature and low-noise scroll compressor imported from the United States. Adopting ultra-high-efficiency SWEP cold coal heat and cold exchange design [made in Sweden (sus#316)], it is more efficient than the traditional internal spiral type.
Heating load adjustment	1. The automatic adjustment of the cold coal flow rate device is adopted to effectively take away the heating load of the product to be tested, which is synchronized with German/Japanese technology. 2. Compared with traditional designs, the control stability and reproducibility are higher, and it achieves ultra-high performance in terms of power saving and energy saving.
Refrigeration compressor	Hitachi or Emerson low temperature and low noise scroll compressor
High efficiency components	1. The condenser and evaporator adopt AC&R double spoiler type aluminum fin device. 2. The throttling devices adopt imported famous brand refrigeration accessories.
Expansion system	Capacity controlled refrigeration system
Evaporative condenser	All copper tube heat exchanger
Refrigerator control method	1. The controller of the control system automatically adjusts the operating conditions of the refrigeration compressor according to the test conditions. The output cooling capacity can be controlled to achieve the principle of saving electricity and water. The working condition is more stable. 2. Evaporation pressure regulating valve. 3. Compressor return air cooling circuit
Refrigerants	Honeywell R404a (ozone depletion index is 0)
