IPX1/IPX2 Vertical Water Drop Test Chamber with 1000*1000mm Drip Area 0.4mm Drip Holes and 200mm Water Dripping Height

IPX1/IPX2 Vertical Water Drop Test Chamber with 1000*1000mm Drip Area 0.4mm Drip Holes and 200mm Water Dripping Height

Ονομασία μάρκας:	Sinuo
Αριθμός μοντέλου:	SN442
Τροποποιημένο:	1
Όροι πληρωμής:	T/t
Ικανότητα εφοδιασμού:	10 σύνολα το μήνα

Λεπτομέρειες

Περιγραφή του προϊόντος

Λεπτομέρειες

Τόπος καταγωγής:

ΚΙΝΑ

Πιστοποίηση:

Calibration Certificate (Cost Additional)

Φάσμα ροής:

00,667-4,167 L/min

Περιοχή σταγόνων:

1000*1000mm

Ροή δοκιμής:

1~1.5mm/min (IPX1), 3~3.5mm/min (IPX2)

Ύψος σταλάγματος νερού:

200 χιλιοστά

Υλικό σώματος εξοπλισμού:

βιομηχανικό κράμα αργιλίου

Χρόνος δοκιμής:

1-9999 δευτερόλεπτα

Ελεγχος:

PLC &» οθόνη αφής 7

Περιστροφική πλάκα:

1-5r/ το λ., μπορεί να τεθεί

Συσκευασία λεπτομέρειες:

Συσκευασία εξαγωγής

Δυνατότητα προσφοράς:

10 σύνολα το μήνα

Επισημαίνω:

IPX1 IPX2 water drop test chamber

IEC60529 water protection tester

vertical water ingress testing equipment

Περιγραφή του προϊόντος

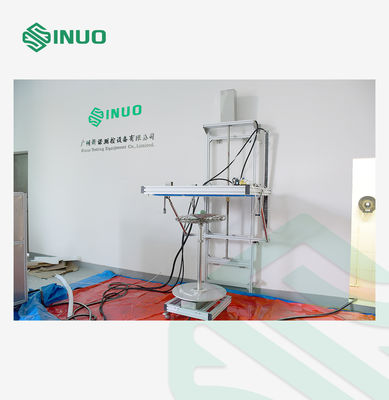

IPX1/IPX2 Vertical Water Drop Test Chamber IEC60529 Water Protection Tester

Complied Standards & Clauses

This testing equipment is used to evaluate protection against vertically falling water. It is designed and built in compliance with the standard requirements of IEC60529 for IPX1 and IPX2, etc.

Product Overview

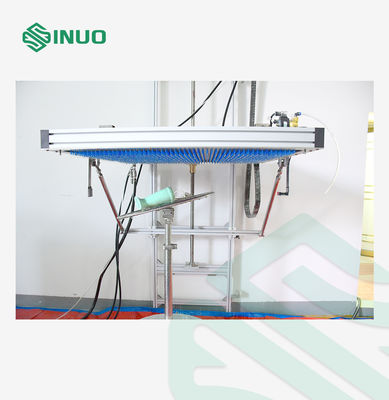

The vertical movement of the drip box is driven by a motor. The electrical control cabinet is equipped with a PLC and a touchscreen interface.

Fine stainless steel filter for debris filtration.
Utilizes compressed air (to be provided by the user) to clear water from the needles, preventing blockage caused by water-reactive substances or atmospheric conditions.

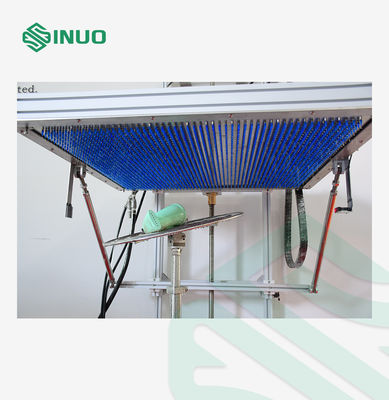

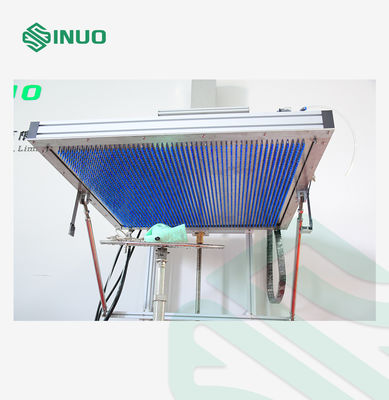

Stainless steel standard medical needle nozzles, readily available and resistant to corrosion.
Needle nozzles and their seats feature a tapered connection, allowing tool-free replacement; any individual damaged nozzle can be quickly replaced.

Technical Parameters

Item	Specifications
Power supply of this equipment	Three phase AC380V, 50Hz, 4KW
Power supply for test sample	Single phase AC220V, 16A
LWGYD-4 flow rate Sensors	Flow range: 0.667-4.167 L/min, pulse output
Small water pump	Brand: South, model no.: CHL2-40, 380VAC, 50Hz, 0.55kw Protection class: IP55 Insulation class: F
Waterproof test range	IPX1 test, IPX2 test, IPX1/IPX2 custom
IPX1-IPX2	Drip area: 1000*1000mm
	Diameter of drip hole: 0.4mm
	Distance between each two neighbor holes:20mm
	Test flow:1~1.5mm/min(IPX1), 3~3.5mm/min(IPX2)
Test time	Set according to the test standard (range 1-9999 seconds), the unit is: second
Water dripping height	200mm (automatically controlled by the test equipment)
Water Drainage	Automatically emptying the tank water after the test is completed, should connected with an air source (the 0.6MPa compressed air source should be prepared by user)
Equipment body material	Industrial aluminum alloy
Installation method	Wall Mount
Turntable	1-5r/ min, can be set
Control	PLC & 7” touch screen
