IPX5 IPX6 Water Spray Test Chamber for Waterproof Testing of Electronic Devices

Ονομασία μάρκας:	Sinuo
Αριθμός μοντέλου:	SN449-2744L
Τροποποιημένο:	1
τιμή:	Customized
Όροι πληρωμής:	T/T
Ικανότητα εφοδιασμού:	1 sets/month

Λεπτομέρειες

Περιγραφή του προϊόντος

Λεπτομέρειες

Place of Origin:

China

Πιστοποίηση:

Calibration Certificate (Cost Additional)

Outer chamber size:

4200*1460*2200mm（W×D×H）

Inner chamber size:

1400*1400*1400mm（W×D×H）

Turntable load:

20 kg

Turntable diameter:

600 mm

Water spray pressure:

30～200kpa

Turntable speed:

1-7R/min

Outer chamber material:

A3 iron plate spraying

Inner chamber material:

SUS304# stainless steel

Packaging Details:

Other

Supply Ability:

1 sets/month

Περιγραφή του προϊόντος

IPX5 IPX6 Water Spray Test Chamber for Waterproof Testing of Electronic Devices

Complied Standards & Clauses

Conforms to IEC 60529, etc.

Equipment Overview

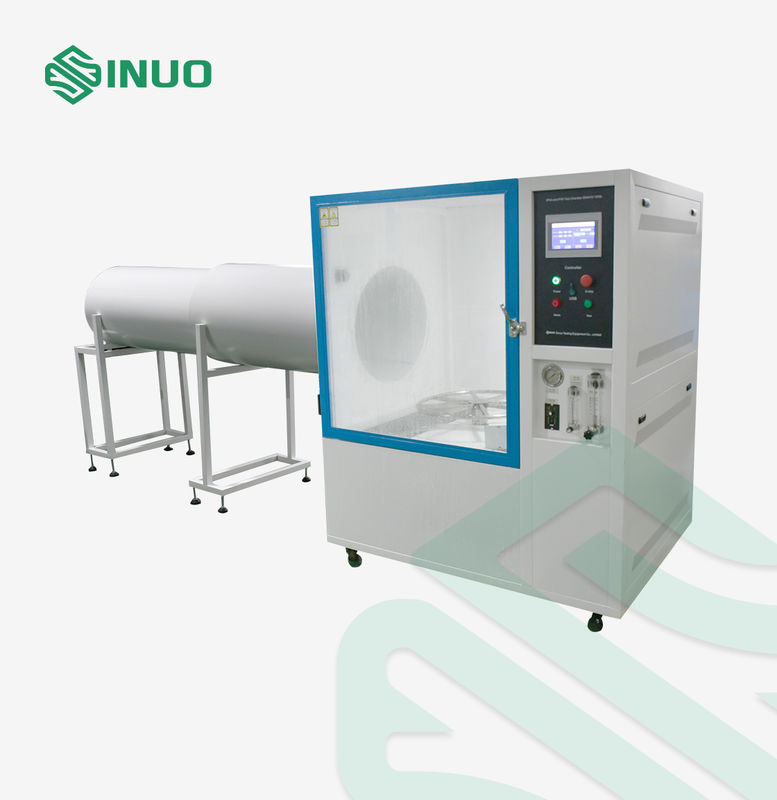

The IPX56-2744L Horizontal Strong Water Spray Test Chamber is a high-performance testing system designed to evaluate the waterproof capabilities of electronic and electrical products under simulated heavy rain and jetting water conditions. It supports IPX5 and IPX6 level testing, essential for validating product durability, safety, and compliance with international waterproofing standards.

Dual IPX5/IPX6 Testing in One Chamber
Equipped with both IPX5 and IPX6 stainless steel nozzles, providing comprehensive testing capability for different waterproof levels.
Large Inner Test Space
Extra-large chamber (1400×1400×1400 mm) suitable for testing large equipment like EV parts, electrical cabinets, and automotive components.
High Water Pressure & Flow Simulation
Supports adjustable pressure from 30–200kPa and water flow up to 100 L/min, simulating realistic heavy rain and jet spray environments.

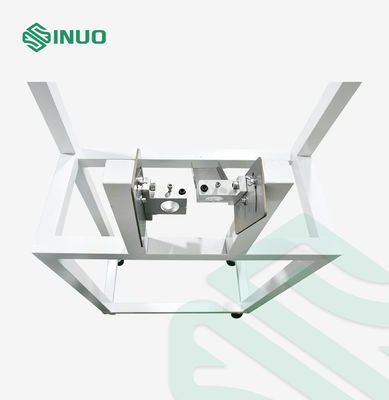

Automated Oscillating Nozzle System
Electrically oscillating nozzles provide uniform water exposure from all angles, ensuring accurate test coverage.
Durable Materials
SUS304 stainless steel inner chamber and 304# stainless steel nozzles ensure corrosion resistance and long service life.
Sinuo Self-Developed Touchscreen System
Intuitive control with precise parameter adjustments for pressure, flow rate, test duration, and turntable speed.

Technical Parameters

Item	Specification
Inner Chamber Size	1400 × 1400 × 1400 mm (W×D×H)
Outer Chamber Size	About 4200 × 1460 × 2200 mm
Turntable Diameter	600 mm
Turntable Load Capacity	20 kg
Turntable Speed	1–7 RPM (adjustable)
Distance from Nozzle to Sample	2500–3000 mm
Number of Nozzles	2 pcs (IPX5: φ6.3mm, IPX6: φ12.5mm)
Water Flow Rate	IPX5: 12.5 ± 0.625 L/min; IPX6: 100 ± 5 L/min
Water Spray Pressure	30–200 kPa (adjustable)
Water Spray Duration	3, 10, 30, 9999 min (adjustable)
Water Circulation	Yes
Nozzle Swing Function	Yes (Electric, Up & Down)
Inner Chamber Material	SUS304 Stainless Steel
Control System	Sinuo Self-Developed Touchscreen System
Power Supply	AC 380V, 50Hz, 3-phase, 4KW
Protection System	Leakage, Phase Sequence, Alarm Prompt
