EV Charging Connector Rolling Test Machine EV Charging Port Mechanical Strength Test

EV Charging Connector Rolling Test Machine EV Charging Port Mechanical Strength Test

Complied Standards & Clauses

Conforms to IEC62196-1:2022,IEC62752:2016

Equipment Overview

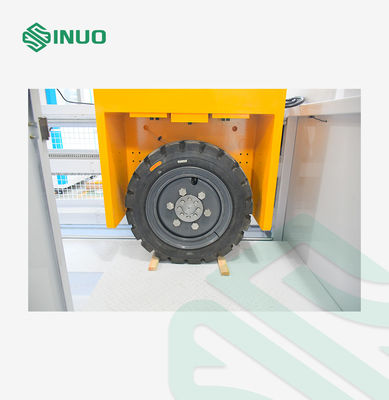

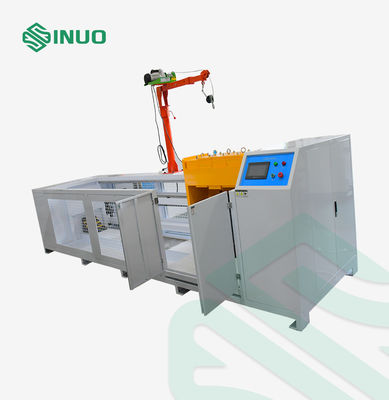

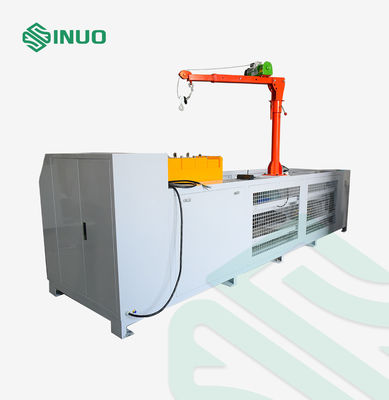

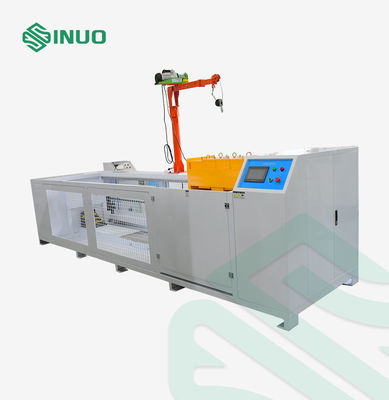

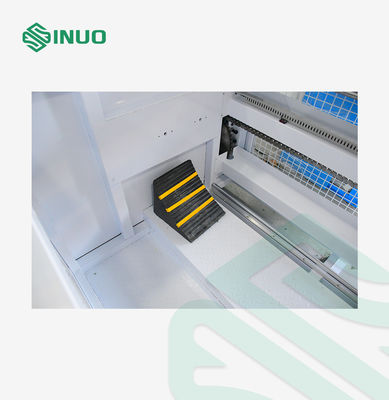

The equipment adopts a cold-rolled steel plate protective box structure design. The surface of the box is painted. The bottom of the box is covered with simulated cement floor. The rolling mechanism can simulate the car tire rolling on the object and slide up and down freely. The charging pile plug bears the same pressure. The drive device drives the rolling mechanism to achieve forward and backward rolling action. The main components are made of stainless steel and aluminum. (Ensure that the tire rolls the sample under normal rolling conditions). The main features are as follows:

1. The chassis of this equipment is treated with a protective cover to ensure the safety of the test process; the bottom of the box is locked to the ground with expansion screws. It is guided by heavy-duty slide rails, the roller group slides, and the power is a high-power motor combined with a turbine reducer to drive the main shaft to rotate to the test speed to promote the rolling test. The sample fixing sliding device is equipped with a functional box installation fixture to meet the standard requirements.

2. The rolling pressure adjustment device is designed as an adjustable structure. The tire, upper and lower sliding frames and counterweights that the sample bears are the weight of the test.

3. The equipment adopts the tire front and rear drive working mode (the test rolling direction is driven by the motor to roll the tire in forward and reverse rotation), keeping the sample fixed, which can most realistically simulate the reciprocating rolling of the car tire and effectively simulate the rolling of the sample.

4. The control system is an independent mechanism. The main unit has PLC control and touch screen operation. The bottom is equipped with fixed installation holes and connection wire ports for easy fixation and connection.

moving.

Technical Parameters

Details
